‼️‼️ Power Unit + Flexible Shaft + Vibrator Head = Complete Unit ‼️‼️

🛑🛑🛑 IMAGES MAY BE DIFFERENT FROM ACTUAL PRODUCTS 🛑🛑🛑

‼️‼️ ‼️ THE PRODUCTS WE HAVE LISTED, WE STOCK, IF YOU NEED A DIFFERENT MOTOR, SHAFT, OR HEAD, WE CAN ORDER THOSE ‼️‼️‼️

Electric Motors

Oztec Electric motors are manufactured to exacting specifications to withstand the rough day to day abuses associated with construction sites. Lightweight, compact and fitted with our comfortable adjustable shoulder strap, this one man power unit will speed through the stiffest concrete. Using the Vibrator Selection Chart allows you to combine power units with any of Oztec's steel or rubber vibrator heads for maximum productivity.

All Oztec Power Units (gas and electric) run vibrator heads 11,000 to 12,000 vpm. They never drop below 10,000vpm even in the lowest slump concrete (near 0) when maximum head size specifications are followed.

Oztec power units come standard with the Quick Disconnect "QD" system. Changing shafts and heads on the job is a snap.

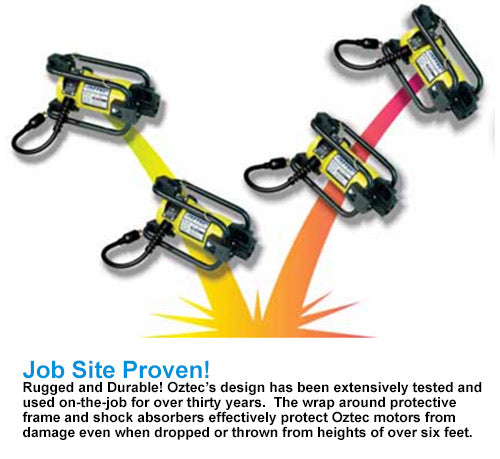

Job Site Proven
Tough, Rugged, and Durable! Oztec's design has been extensively tested and used on-the-job for over thirty years. The wrap around protective frame and shock absorbers effectively protect Oztec motors from damage even when dropped or thrown from heights of over six feet.

Oztec units meet all United States OSHA and Canadian safety standards.

OZTEC Electric Vibrator Motors
1.2OZ	115V-50/60Hz,1 Phase AC/DC,9 AMPS
1.8OZ	115V-50/60Hz,1 Phase AC/DC,15 AMPS
2.4OZ	115V-50/60Hz,1 Phase AC/DC,17 AMPS
3.2OZ	115V-50/60Hz,1 Phase AC/DC,19 AMPS

Oztec Concrete Vibrator Flexible Shaft inner cores are made from extra-high carbon steel wires with casings made from tough abrasion resistant neoprene rubber, reinforced with multiple layers of high tensile wire braiding with a hardened flat steel liner. This construction makes Oztec Flexible Shafts rigid enough for driving into the stiffest concrete without kinking yet limber and non-slip for easy and effective handling.

Oztec Flexible Shafts are interchangeable on all Oztec power units, are reversible (doubling their service life), and come supplied with "quick change" adapters.

Please Note: Pencil shafts can be used with any motor. However, only the 3/4" Pencil Head can be used with this system.

Not sure what parts you need to make a complete system

When transmitting power from the power source to the vibrating head, select one of Oztec's flexible shafts. Oztec Flexible Shaft inner cores are made from extra-high carbon steel wires with casings made from tough abrasion resistant neoprene rubber, reinforced with multiple layers of high tensile wire braiding with a hardened flat steel liner.

This construction makes Oztec Flexible Shafts rigid enough for driving into the stiffest concrete without kinking yet limber and non-slip for easy and effective handling.

Oztec Flexible Shafts are interchangeable on all Oztec power units, are reversible (doubling their service life), and come supplied with "quick change" adapters.

OZTEC Standard Vibrator Shafts
FS02OZ	2 ft. Flexible Shafts
FS05OZ	5 ft. Flexible Shafts
FS07OZ	7 ft. Flexible Shafts
FS10OZ	10 ft. Flexible Shafts
FS12OZ	12 ft. Flexible Shafts
FS14OZ	14 ft. Flexible Shafts
FS16OZ	16 ft. Flexible Shafts
FS18OZ	18 ft. Flexible Shafts
FS21OZ	21 ft. Flexible Shafts
OZTEC Penclie Vibrator Shafts (For use with Penclie HEADS Only)
FSP03OZ	3 ft. Pencile Shafts
FSP06OZ	6 ft. Pencile Shafts
FSP09OZ	9 ft. Pencile Shafts
FSP11OZ	11 ft. Pencile Shafts
FSP15OZ	15 ft. Pencile Shafts
FSP20OZ	20 ft. Pencile Shafts

Oztec Vibrator Steel Head produce the highest amplitude and centrifugal force, generating the largest radius of influence of any heads available. Energy is efficiently transferred from the motor, via the shaft, to the head, which is all eccentric (vibrating the entire head). Whether combined with one of Oztec's electric or gasoline powered motors and choice of flexible shafts…The results are exceptional!

Superior consolidation, increased productivity and a process more forgiving of less than perfect vibrating techniques.

The Benefits?? Lower cost…Higher earnings…Superior quality concrete!!

Not sure what parts you need to make a complete system?

Oztec Vibrator Heads produce the highest amplitude and centrifugal force, generating the largest radius of influence of any heads available. Energy is efficiently transferred from the motor, via the shaft, to the head, which is all eccentric (vibrating the entire head). Whether combined with one of Oztec's electric or gasoline powered motors and choice of flexible shaft, the results are exceptional! Superior consolidation, increased productivity and a process more forgiving of less than perfect vibrating techniques. The benefits? Lower cost, Higher earnings, Superior quality concrete!

Radius of Action - The most important bit of information needed for complete consolidation.
Radius of Action is the distance from the center of the vibrator to the outer edge, where complete consolidation takes place (see diagram).
For quality concrete Oztec lists conservative values for "Radius of Action". Complete consolidation is necessary for low slump concrete with close meshed reinforcement bars, high strength concrete and architectural concrete.
Radius of Action can be twice the listed values when slump is high or super plastisizers are used. It is important these values are used only as a general guide. Specifications are subject to change.

OZTEC Vibtror Heads
OZTEC Standard Steel Vibrator Heads
HP075OZ	3/4" Steel Heads (Penclie Head)
H100OZ	1" Steel Heads
H125OZ	1-1/4" Steel Heads
H150OZ	1-1/2" Steel Heads
H175OZ	1-3/4" Steel Heads
H200OZ	2" Steel Heads
H250OZ	2-1/2" Steel Heads
OZTEC Rubber Coated Vibrator Heads
HR188OZ	1-7/8" Rubber Heads
HR250OZ	2-1/2" Rubber Heads
HR275OZ	2-3/4" Rubber Heads
HSR275OZ	2-3/4" X 6" Rubber Heads
OZTEC Rubber Tip Vibrator Heads
H100OZ-RT	1" Rubber Tip Heads
H125OZ-RT	1-1/4" Rubber Tip Heads
H150OZ-RT	1-1/2" Rubber Tip Heads
H175OZ-RT	1-3/4" Rubber Tip Heads
H200OZ-RT	2" Rubber Tip Heads
H250OZ-RT	2-1/2" Rubber Tip Heads
